Velodyne Acoustics VI-Q 12 Subwoofer
Velodyne Acoustics VI-Q 12 Subwoofer

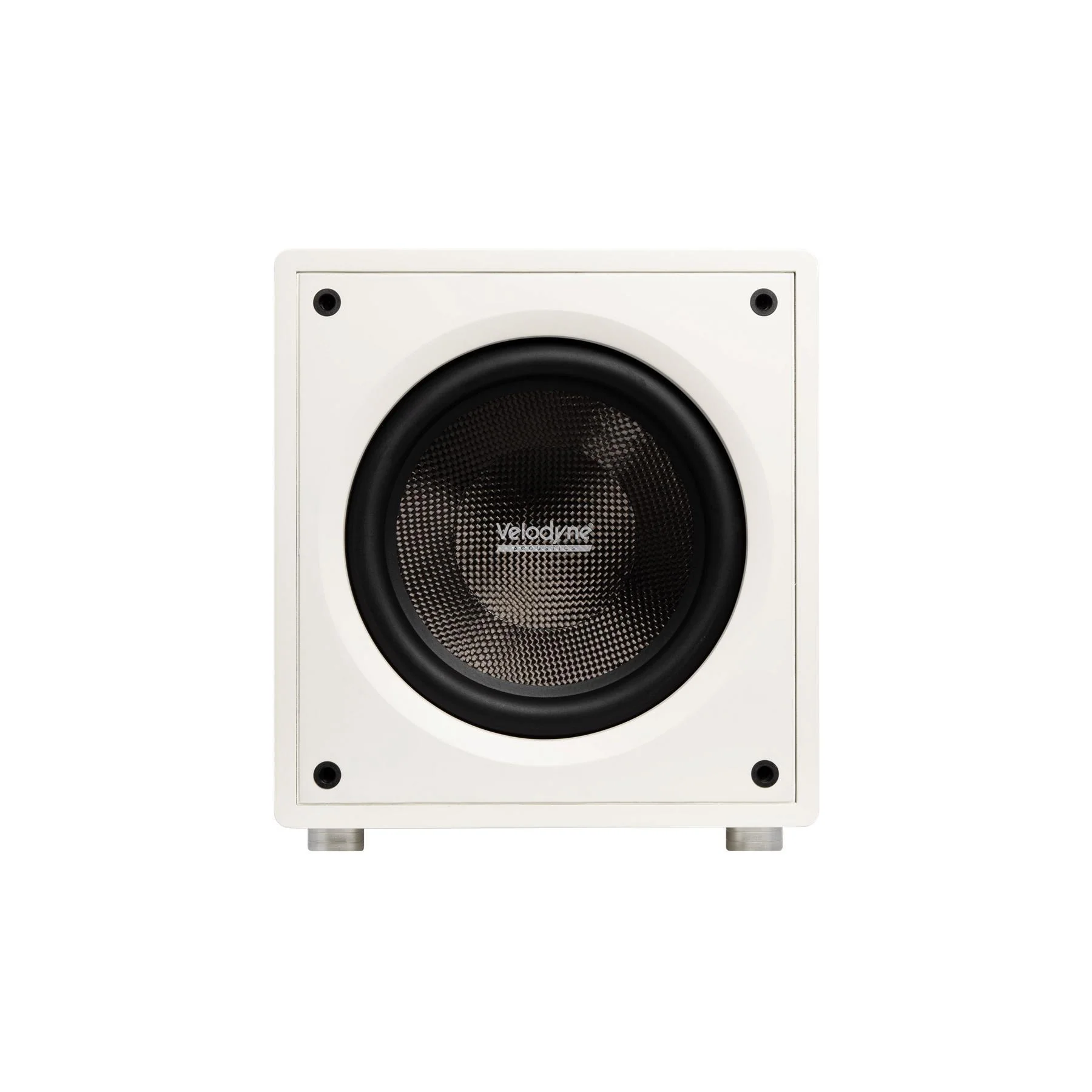

The Velodyne Acoustics VI-Q 12 is a 12-inch sealed subwoofer engineered to provide deep, precise low frequencies while remaining discreet in the room. Its powerful Class D amplifier and high-excursion carbon fiber driver deliver impactful bass that perfectly supports compact and full-size speakers at the lowest frequencies.With app-controllable DSP via the iWoofer™ app, including room adjustment and a 25-band parametric EQ, the VI-Q 12 offers highly flexible tuning for music and movie listening. The rigid HDF enclosure with an extra-thick front baffle, combined with premium analog and balanced connections, ensures both sonic integrity and easy integration into sophisticated hi-fi and home theater systems.
Velodyne Acoustics VI-Q 12 Subwoofer Full Specifications:
- Driver: 12″ front-firing driver
- Amplifier: Class D, 900 watts dynamic / 500 watts RMS
- Overall frequency response (±3 dB): 25 Hz – 180 Hz
- Overall frequency response (±10 dB): 22 Hz – 250 Hz
- Low-pass crossover: 50 Hz to 180 Hz (12 dB/octave)
- Phase: 0 / 180 degrees
- Cabinet design: 22 mm HDF with 50 mm front baffle
- Magnet structure: Dual ferrite magnet motor
- Woofer: 12″ high-excursion triple-vented basket driver with carbon fiber membrane and convex cone
- Voice coil: Four-layer 2.5″ / 63 mm voice coil
- Input connections: Gold-plated Stereo/LFE RCA, nickel-plated XLR, and high-level input
- Output connections: Gold-plated Stereo/LFE RCA, nickel-plated XLR
- Power selector: Off / Auto / On
- Finishes: Flat matte black / flat matte white
- Dimensions (W × H × D, incl. feet and connectors): 41 cm × 48 cm × 41 cm
- Weight (approx.): 25 kg
- Shipping weight (approx.): 28 kg
Velodyne Acoustics VI-Q 12 Subwoofer Q&A:
- What room size is the VI-Q 12 best suited for?
- It is ideal for small to medium-large rooms where deep, controlled bass is desired without overpowering the system.
- How deep does the VI-Q 12 play?
- The VI-Q 12 reaches down to 25 Hz (±3 dB) and 22 Hz (±10 dB) for impactful low-frequency effects.
- Can the VI-Q 12 be tuned for different listening positions?
- Yes, the iWoofer™ app offers room adjustment, a 25-band parametric EQ, and presets to optimize performance.
- What connectivity options does the VI-Q 12 provide?
- It includes gold-plated Stereo/LFE RCA and nickel-plated XLR inputs and outputs, plus a high-level input.
- Does the VI-Q 12 support auto power on/off?
- Yes, the power selector provides Off, Auto, and On modes for automatic wake-up and standby.
- How big and heavy is the VI-Q 12?
- It measures 41 × 48 × 41 cm (W × H × D) and weighs approximately 25 kg, with a shipping weight of about 28 kg.
Velodyne Acoustics VI-Q 12 Subwoofer Downloads:
Velodyne Acoustics VI-Q 12 Subwoofer User Manual
