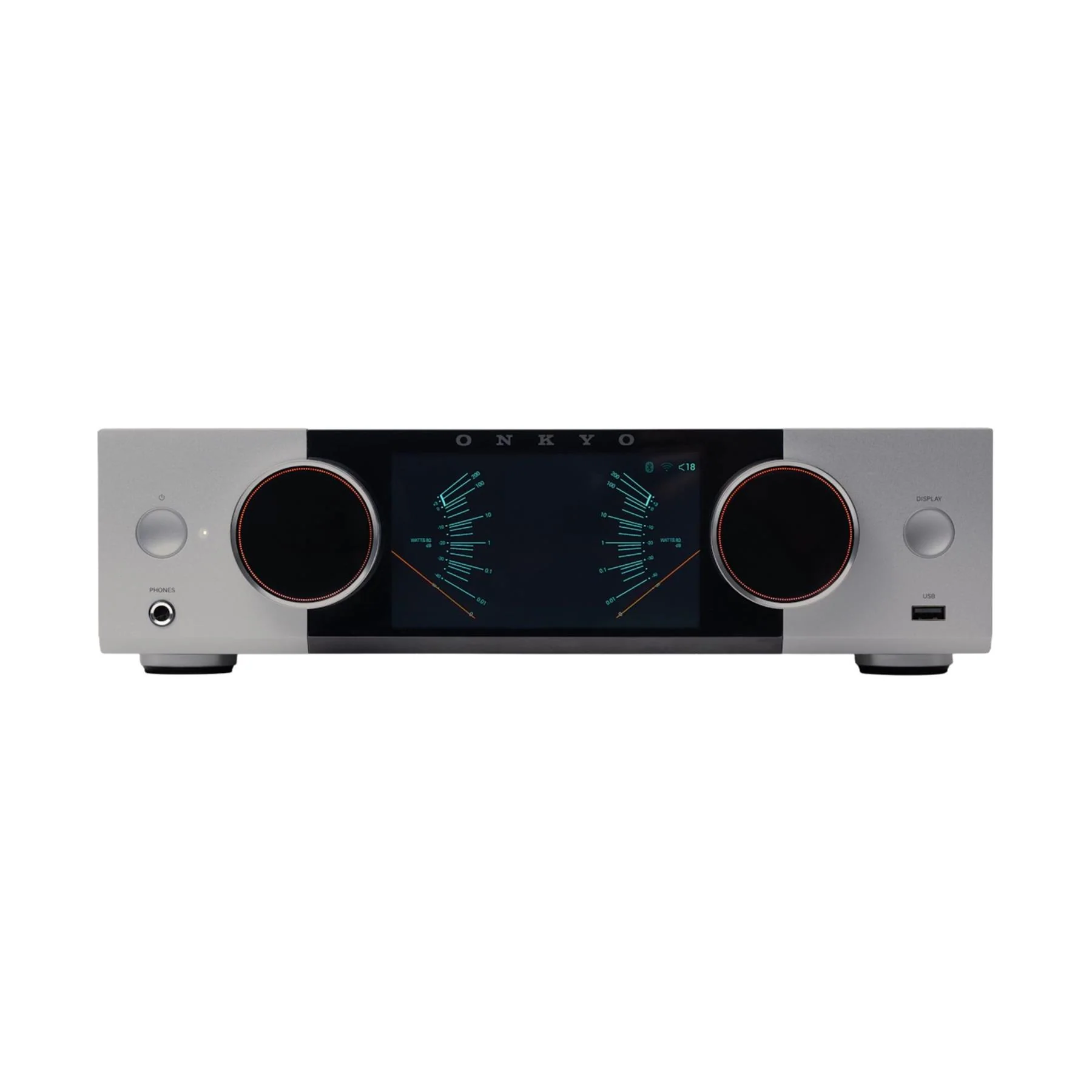

Onkyo Muse Y-50 Integrated Amplifier

Onkyo Muse Y-50 Network Streamer & Integrated High-Power Amplifier

The Onkyo Muse Y-50 Network Streamer & Integrated High-Power Amplifier is a premium all-in-one hi-fi solution built for listeners who want powerful stereo performance, modern streaming convenience, and elegant Japanese-inspired design. Delivering up to 250 watts at 4 ohms through an Axign Class D amplifier with MOSFET output, the Y-50 is engineered to drive everything from bookshelf speakers to larger floorstanding models with authority, clarity, and control. Its 5.46-inch color LCD display adds a refined user experience with playback information and an analog-style VU meter, while built-in support for Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, Google Cast, Bluetooth, Wi-Fi, Ethernet, and USB playback gives it exceptional flexibility for today’s music systems. The Y-50 also expands beyond music with HDMI input, HDMI ARC, HDMI output, MM/MC phono support, room calibration, and a strong selection of analog and digital connections, making it an ideal centerpiece for a modern 2-channel home audio setup.

What It's Good At:

• Driving a wide range of speakers with up to 250W of powerful Class D amplification
• Streaming music easily through Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Google Cast
• Serving as a compact all-in-one stereo hub for music, TV audio, gaming audio, and turntables
• Improving room performance with proprietary Onkyo Room EQ calibration
• Blending premium audio performance with a sleek aluminum front panel and Japanese San Kuzushi-inspired top plate
• Delivering flexible connectivity with HDMI, phono, RCA, coaxial, optical, USB, Ethernet, Wi-Fi, Bluetooth, subwoofer out, and pre-out connections

Onkyo Muse Y-50 Full Specifications:

• Product name: Onkyo Muse Y-50
• Product type: Network Streamer & Integrated High-Power Amplifier / Network Integrated Amplifier
• Series: Muse Series
• Finish options: Black, Silver
• Custom app: Onkyo Controller
• Display: 5.46-inch color LCD
• Display features: song information display, analog-style VU meter
• Room calibration: Onkyo Room EQ / Original Onkyo Room EQ
• Analog audio inputs: RCA (Unbalanced) x 3 pair
• Phono input: 1 pair, MM/MC compatible
• GND terminal: Yes
• MM/MC selector switch: Yes
• Digital audio inputs: HDMI IN x1, COAX x1, Optical x1
• HDMI IN support: HDCP 2.3, 4K/120p, 8K/60p, VRR, QFT, ALLM, QMS, SBTM, DSC, HDR10+, Dolby Vision
• HDMI ARC: Yes
• HDMI output: 1
• USB: USB-A (storage playback) x 1 / USB port
• Audio pre output: RCA (Unbalanced) x 1 pair / PRE OUT L/R x1
• Subwoofer output: 1 ch / Subwoofer PRE OUT x1
• Headphone output: 1/4 in. (6.3 mm) jack x 1 / PHONES jack
• Speaker terminals: Yes
• Network connectivity: Wi-Fi and Ethernet terminal (10BASE-T/100BASE-TX)
• Wireless LAN: IEEE 802.11 a/b/g/n/ac, 5 GHz / 2.4 GHz
• Bluetooth codecs: SBC, AAC
• Network services: Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, Google Cast, Music Server
• Amplifier channels: 2 ch
• Pre-amplifier channels: 2.1 ch
• Amplifier type: Class D
• Output power (U.S.A.): 125W FTC, 8Ω, 20Hz–20kHz, THD 0.08%, 2 ch driven; 250W at 4Ω, 1kHz, THD 0.7%, 2 ch driven
• Output power (EMEA/APAC): 250W at 4Ω, 1kHz, THD 0.7%, 2 ch driven; 125W at 8Ω, 20Hz–20kHz, THD 0.08%, 2 ch driven
• THD+N: 0.08% (20 Hz–20 kHz, half power)
• Input sensitivity and impedance: 200 mV / 20 kΩ (LINE/RCA); 4 mV, 47 kΩ / 0.4 mV, 110 Ω (PHONO MM/MC)
• Rated RCA output level and impedance: 1 V / 470 Ω (PRE OUT L/R, Subwoofer)
• Frequency response: 20Hz–30kHz (+1/-3dB); Direct mode 20 Hz–30 kHz / +1 dB, -3 dB
• Signal-to-noise ratio: 100 dB (IHF-A, LINE 2V IN, SP OUT); 106 dB (IHF-A, digital source with 0 dB input, SP OUT); 76 dB (IHF-A, PHONO MM 5mV IN, SP OUT); 60 dB (IHF-A, PHONO MC 0.5mV IN, SP OUT)
• Supported speaker impedance: 4–16Ω
• Headphone rated output: 80 mW + 80 mW (32Ω, 1kHz, 10% THD)
• Supported headphone impedance: 13–600Ω
• Headphone frequency response: 20 Hz–40 kHz
• PCM sampling rates supported from digital input: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz / 16-bit, 20-bit, 24-bit
• Product dimensions (W x H x D): 350 x 99 x 337 mm
• Product dimensions in inches: 13.8 x 3.9 x 13.3 in. / 13-3/4 x 3-7/8 x 13-1/4 in.
• Product weight: 4.9 kg / 10.8 lb
• Package dimensions (W x H x D): 465 x 225 x 405 mm
• Package dimensions in inches: 18.3 x 8.9 x 15.9 in.
• Package weight: US 7.2 kg / 15.9 lb; EMEA 7.6 kg / 16.8 lb
• Power consumption: 120W (North America); 115W (Europe, Asia/Oceania, Japan)
• AC voltage / power supply: AC 100–240V, 50Hz/60Hz
• Included in the box: main unit, power cord (quantity may vary by model/region), wireless antenna, Initial Setup Guide, Safety Information, remote controller (RC-994S), AAA/R03 batteries x2

Onkyo Muse Y-50 Q&A:

What kind of speakers can the Onkyo Muse Y-50 drive?

The Y-50 is designed to drive a wide range of speakers, with output up to 250W at 4 ohms and support for speaker impedances from 4 to 16 ohms, making it suitable for both bookshelf and floorstanding speakers.

Does the Y-50 support music streaming services?

Yes. It supports Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, Google Cast, Bluetooth, Music Server playback, Wi-Fi, and Ethernet networking for flexible streaming options.

Can this amplifier connect to a TV or gaming console?

Yes. The Y-50 includes HDMI input, HDMI ARC, and HDMI output, making it a strong choice for integrating TV audio and compatible video or gaming devices into a stereo setup.

Is the phono input compatible with both MM and MC cartridges?

Yes. The built-in phono input is compatible with both MM and MC cartridges and includes an MM/MC selector switch plus a ground terminal for turntable connection.

Does the Y-50 include room calibration?

Yes. It features Onkyo Room EQ, a proprietary room calibration system designed to measure your listening environment and optimize the sound field for better performance.

Can I connect a subwoofer or external amplifier?

Yes. The Y-50 offers a dedicated subwoofer output and RCA pre-outs, giving you more flexibility when building a more expansive 2.1-channel or external amplification setup.

Does it support wired and wireless networking?

Yes. The unit supports Wi-Fi and includes an Ethernet terminal rated at 10BASE-T/100BASE-TX for stable wired network connections.

What comes in the box with the Onkyo Muse Y-50?

In the box you get the main unit, power cord, wireless antenna, Initial Setup Guide, Safety Information, remote controller (RC-994S), and two AAA/R03 batteries.

Onkyo Muse Y-50 Downloads:

Onkyo Muse Y-50 User Manual
Onkyo Muse Y-50 Specifications Sheet
