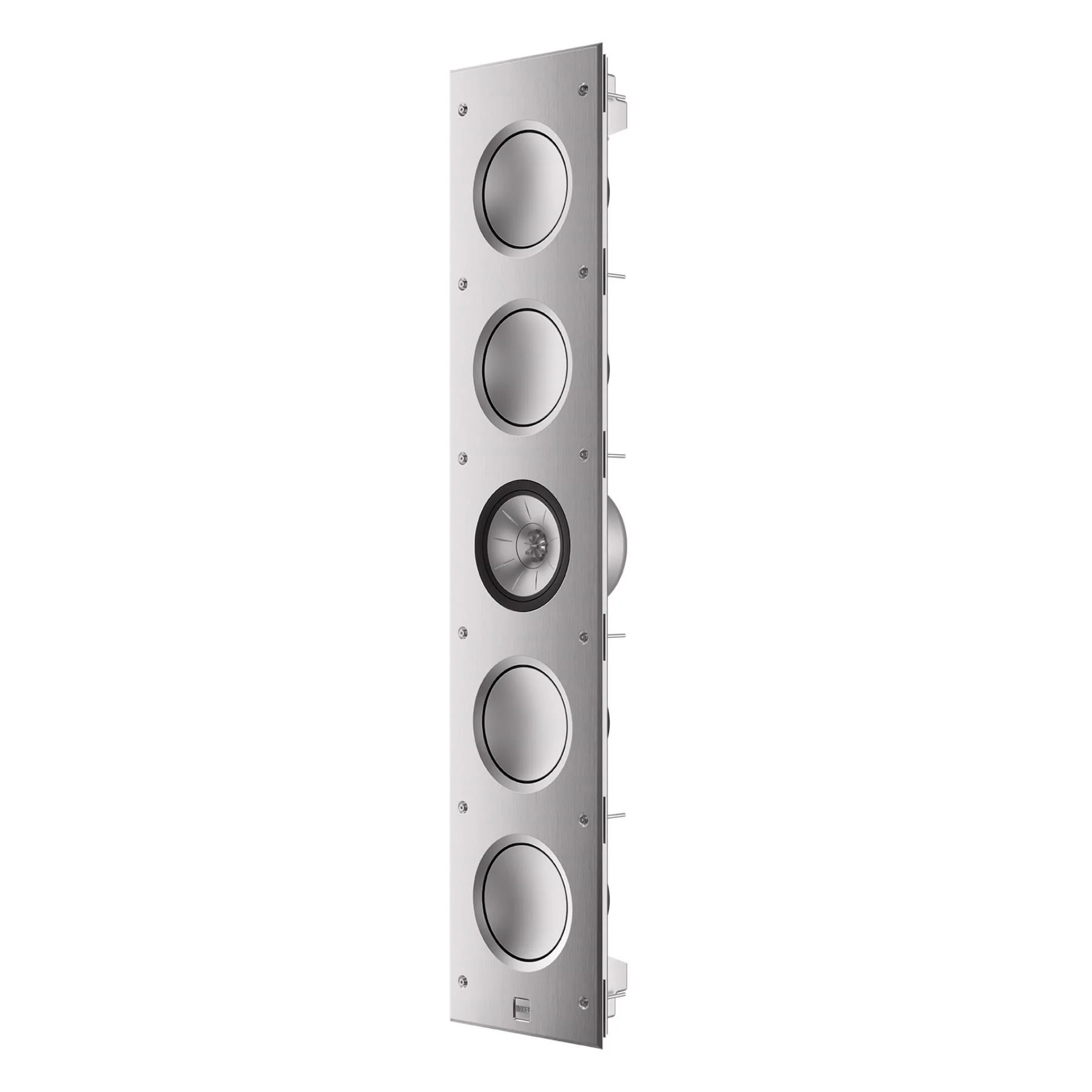

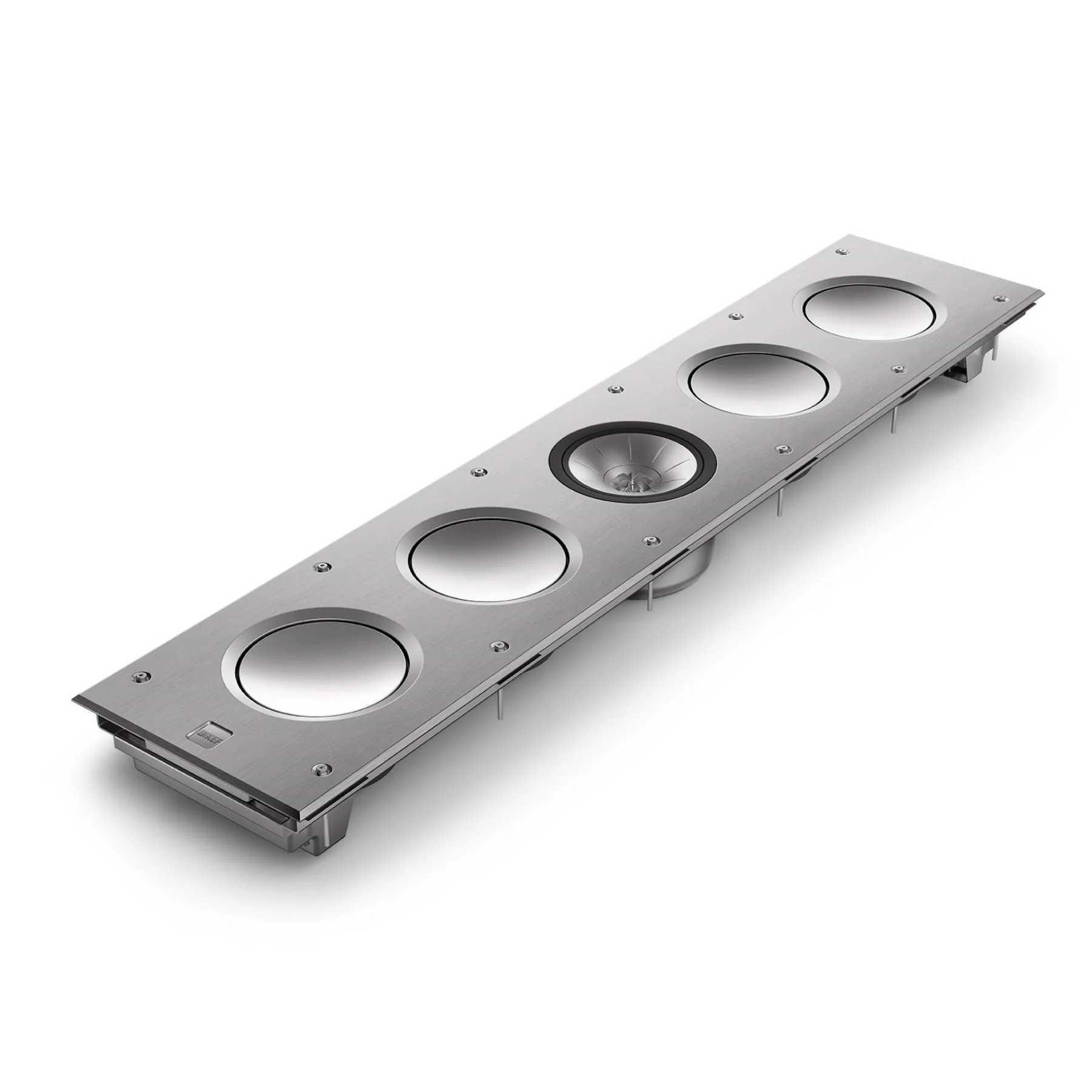

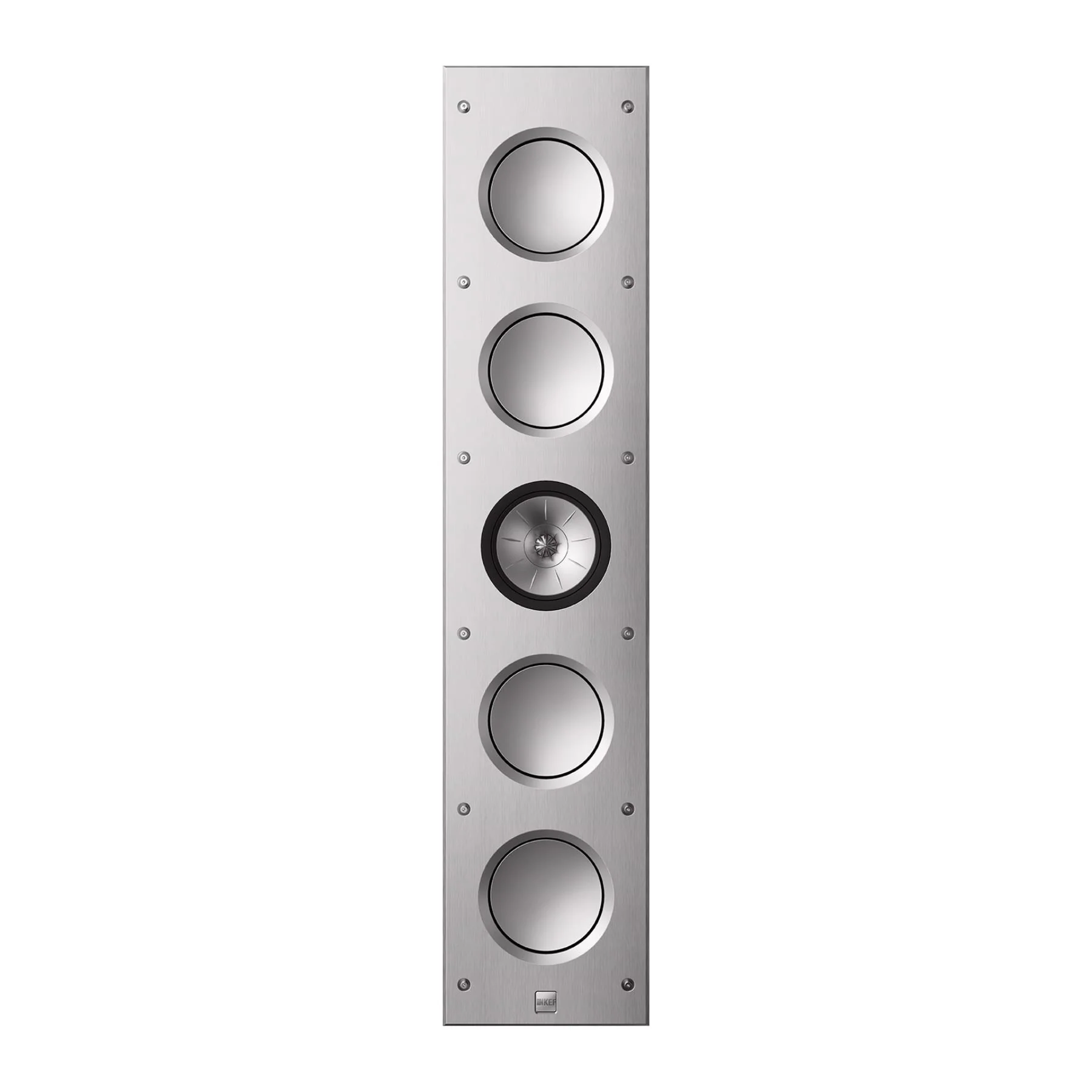

KEF Ci5160RLM-THX Ci-R Series In-Wall Speaker

KEF Ci5160RLM-THX In-Wall Speaker - Experience Cinema-Quality Audio at Home

The KEF Ci5160RLM-THX In-Wall Speaker. Engineered for unparalleled performance, this architectural marvel features KEF’s revolutionary Metamaterial Absorption Technology (MAT™) paired with the advanced Uni-Q driver array, delivering immersive sound with remarkable clarity. Certified Ultra by THX®, it ensures true cinema-quality audio right in your living room.

Key Features:

• Metamaterial Absorption Technology: Absorbs 99% of unwanted sound for pristine audio.

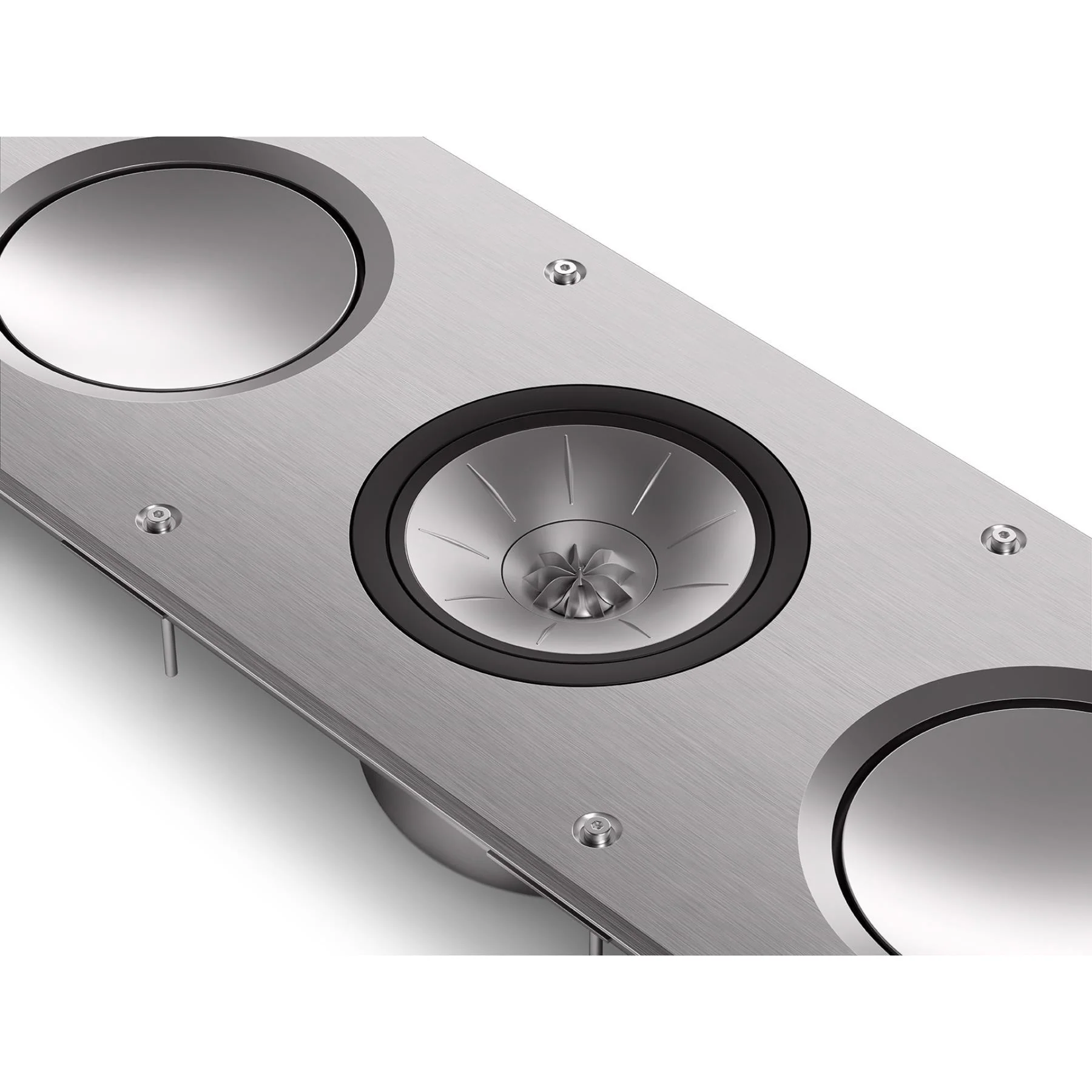

• Uni-Q® Driver Array: Acts as a single point source, enlarging the 'sweet spot' and dispersing sound evenly.
• THX® Certified Ultra: Guarantees ultra-high performance with authentic theater sound quality.
• True Bass Definition: Four hybrid aluminum bass drivers deliver tight, deep, and controlled bass.
• Precision Engineering: 5.5mm thick precision-machined aluminum baffle eliminates vibration, providing a stable platform for optimal driver performance.
• Seamless Integration: Paintable magnetic metal grille and optional black cloth grille allow the speaker to blend seamlessly into any environment.
• Impeccable Finish: Available in Aluminium Silver, featuring tone-matched Uni-Q and bass drivers.

KEF Ci5160RLM-THX What's Included:

• Ci5160RLM-THX Speaker x 1
• Metal Grille x 1
• Cutout Template x 1
• Gasket x 4
• Hex Drill Tool x 1
• Wall Protection Tape x 3
• Warranty Booklet
• Manual

KEF Ci5160RLM-THX Specifications:

• Nominal Impedance: 4Ω
• Sensitivity (2.83V/1m): 89dB
• Frequency Response (±6 dB): 40 - 28kHz
• Frequency Range (-10 dB): 32 - 45kHz
• Nominal Coverage (degrees): 150°
• Crossover Frequency: 640Hz, 2.6kHz
• Drive Units: LF: 4 x 160mm (6.5in.), MF: 160mm (6.5in.) Uni-Q, HF: 25mm (1in.) vented aluminum dome with Metamaterial Absorption Technology
• Recommended Amplifier Power: 50 - 350 W
• Recommended High-pass Filter (Hz): 35Hz - 80Hz
• Product External Dimensions (H X W X D): 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
• Cut-out Dimensions (H X W): 1052 x 209mm (41.42 x 8.23in.)
• Net Weight: 18.7kg (41.1lbs.)
• Mounting Depth From Surface: 99mm (3.9in.)
• Optional Rough In Frame: RIF5160L
• Ideal Rear Volume (L): 90
• Minimum Rear Volume (L): 40
• Max SPL (dB): 110dB
• Certification: THX® Certified Ultra
• Wall Thickness (Maximum): 40mm (1.58in.)
• Wall Thickness (Minimum): 6mm (0.24in.)

The KEF Ci5160RLM-THX In-Wall Speaker. Whether you're watching movies or listening to music, immerse yourself in rich, detailed sound like never before. Order now and bring the cinema to your home!

KEF Ci5160RLM-THX Downloads
Ci5160RLM-THX Manual
Ci5160RLM-THX Cutout Template
Ci5160RLM-THX Product Drawing
Ci5160RLM-THX Ci Minimum Cabinet Volume Chart
Ci5160RLM-THX Product Information Sheet
Ci5160RLM-THX Extreme Home Theatre Info Sheet
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
