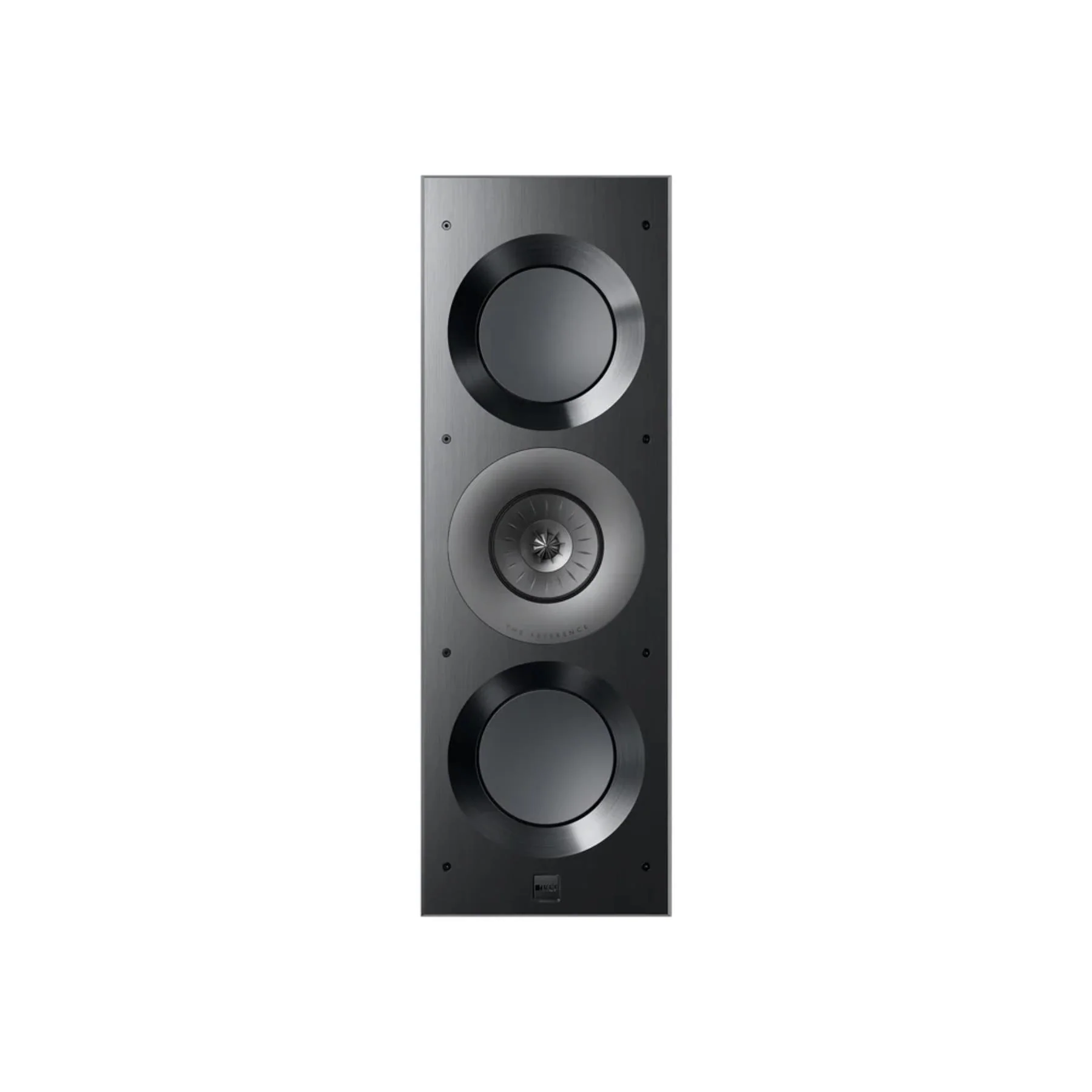

KEF Ci3160REFM-THX In-Wall Ci-Reference Series Speaker
KEF Ci3160REFM-THX In-Wall Ci Reference Speaker
Experience unparalleled audio excellence with the THX® Certified Ultra KEF Ci3160REFM-THX In-Wall Ci Reference Speaker. Handcrafted by KEF engineers in Maidstone, UK, this speaker surpasses industry standards, delivering a premium auditory experience for large home theatres and living rooms.
KEF Ci3160REFM-THX Key Features:
- THX® Certified Ultra Speaker with MAT™ technology
- 12th generation Uni-Q driver array for immersive soundstage
- Two 160mm (6.5in.) bass drivers for rich, articulate bass down to 35Hz
- Metamaterial Absorption Technology for absorbing 99% of unwanted sound
- Handcrafted in the UK for superior quality
- Uni-Q® design for an enlarged 'sweet spot' and even sound dispersion

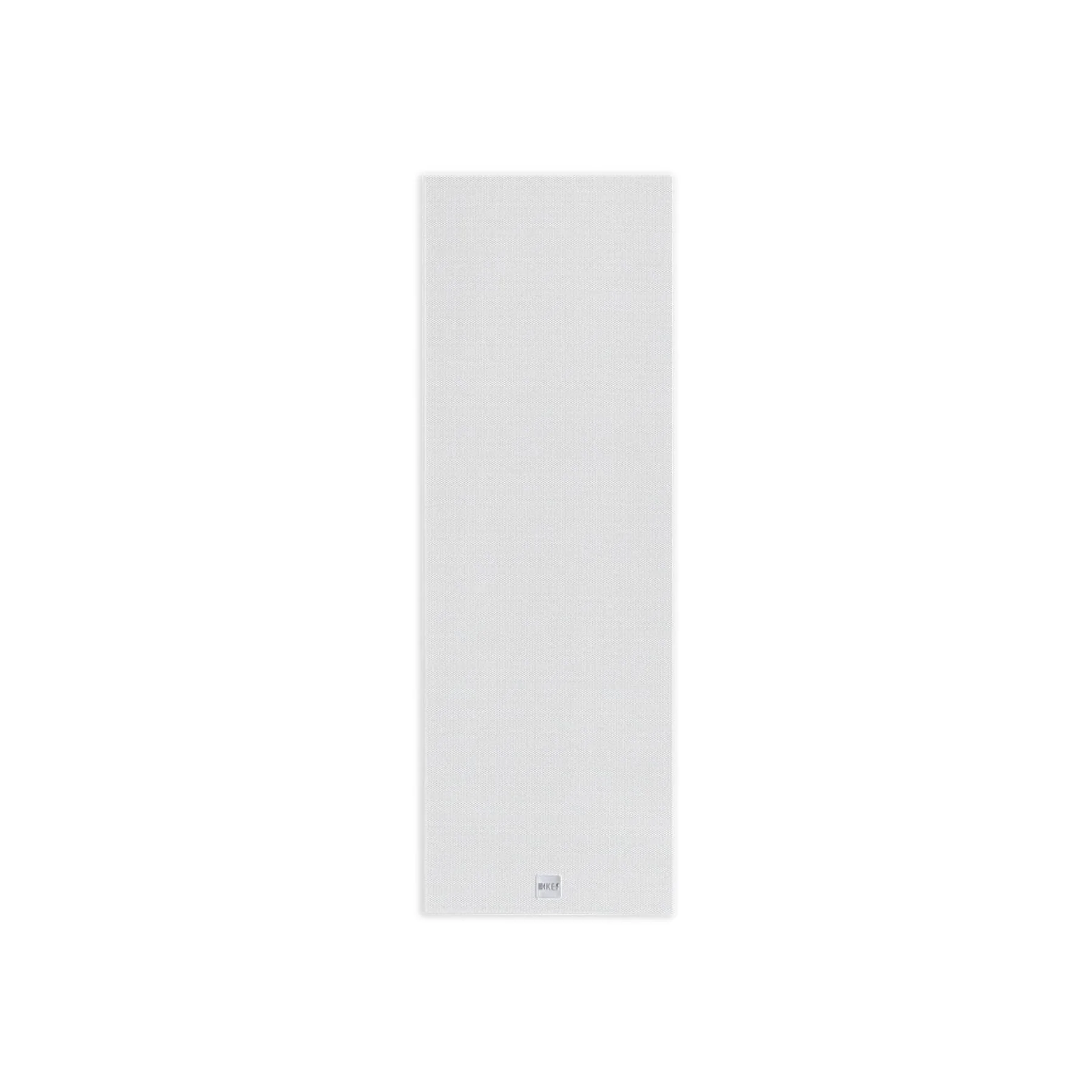

- Sleek Aluminium Black/Grey finish with paintable magnetic grille
KEF Ci3160REFM-THX Specifications:
- Nominal Impedance: 4Ω
- Sensitivity (2.83V/1m): 89dB
- Frequency Response (±6 dB) open-backed: 40 - 28kHz
- Frequency Range (-10 dB): 32 - 45kHz
- Nominal Coverage (degrees): 150°
- Crossover Frequency: 600Hz, 3000Hz

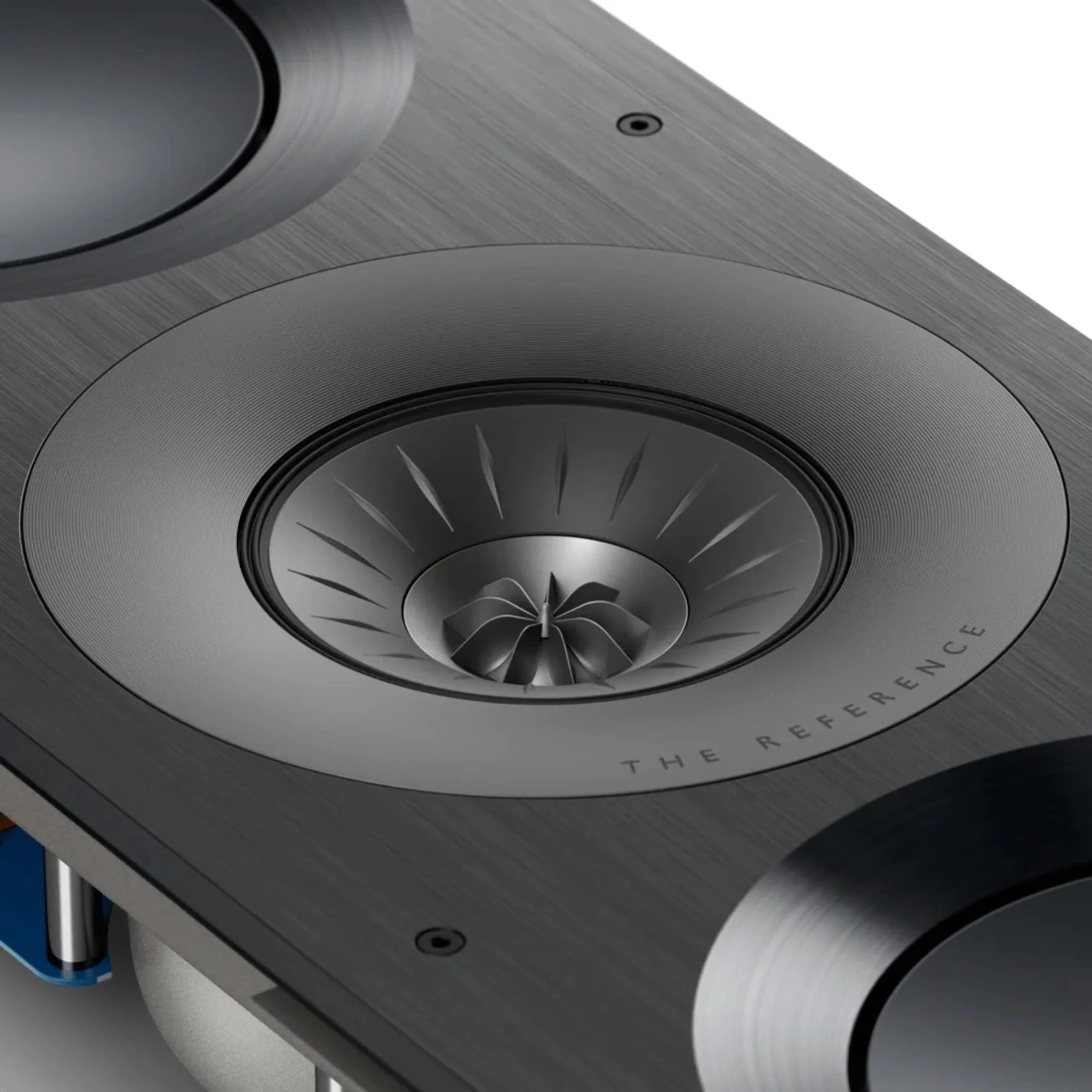

- Drive Units: LF: 2 x 160mm (6.5in.), MF: 125mm (5.25in.) Uni-Q, HF: 25mm (1in.) vented aluminium dome with MAT
- Recommended Amplifier Power: 50 - 350 W
- Recommended High-pass Filter (Hz): 35Hz - 80Hz
- Product External Dimensions (H X W X D): 680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
- Cut-out Dimensions (H X W): 660 x 209mm (25.98 x 8.23in.)
- Net Weight: 13.6kg (29.92lbs.)
- Mounting Depth From Surface: 99mm (3.9in.)
- Optional Rough In Frame: RIF3160L
- Ideal Rear Volume (L): 60
- Minimum Rear Volume (L): 30
- Max SPL (dB): 110dB
- Certification: THX Certified Ultra
- Wall Thickness (Maximum): 40mm (1.58in.)
- Wall Thickness (Minimum): 6mm (0.24in.)
Enhance your home theatre setup with the KEF Ci3160REFM-THX, where superior sound meets exquisite craftsmanship. Order now for an unmatched auditory experience.
KEF Ci3160REFM-THX Downloads
KEF Ci3160REFM-THX Manual
KEF Ci3160REFM-THX Cutout Template
KEF Ci3160REFM-THX Product Information Sheet
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
Original: $8,999.99
-65%$8,999.99
$3,150.00
