Hegel H30A Mono/Stereo Power Amp - Clearance / Open Box
Hegel H30A Power Amplifier
Introducing the Hegel H30A, often dubbed "The Orchestra," a reference power amplifier designed to orchestrate music on any speakers, effortlessly delivering a staggering 1100 watts in 8 ohms in its mono state and remaining stable even with 1-ohm loads. This audio powerhouse embodies Hegel's prowess in amplifier design, featuring dual 1000 VA toroidal transformers, a massive power bank of 270,000 μF capacitors, and a sophisticated output stage with 56 high-speed, ultra-low distortion bipolar transistors, enabling it to seamlessly handle even the most demanding orchestral pieces, providing unrivaled power for an impeccable musical experience.
Incorporating single pair FET transistors in its input stage, meticulously hand-matched to eliminate higher-order harmonic distortion, and featuring Hegel's patented SoundEngine technology to actively correct for distortion in real-time, the H30A achieves a remarkable balance between power and precision, delivering deep, controlled bass, exceptionally detailed highs, and sublime midrange articulation. This amplifier stands as the pinnacle of Hegel's amplifier technology, offering total control and musicality, making it the ideal conductor for any speaker and any genre of music.
Hegel H30A Specifications:
- Output Power: More than 1100 W in 8 ohms (mono)
- Minimum Load Impedance: 1 ohm load

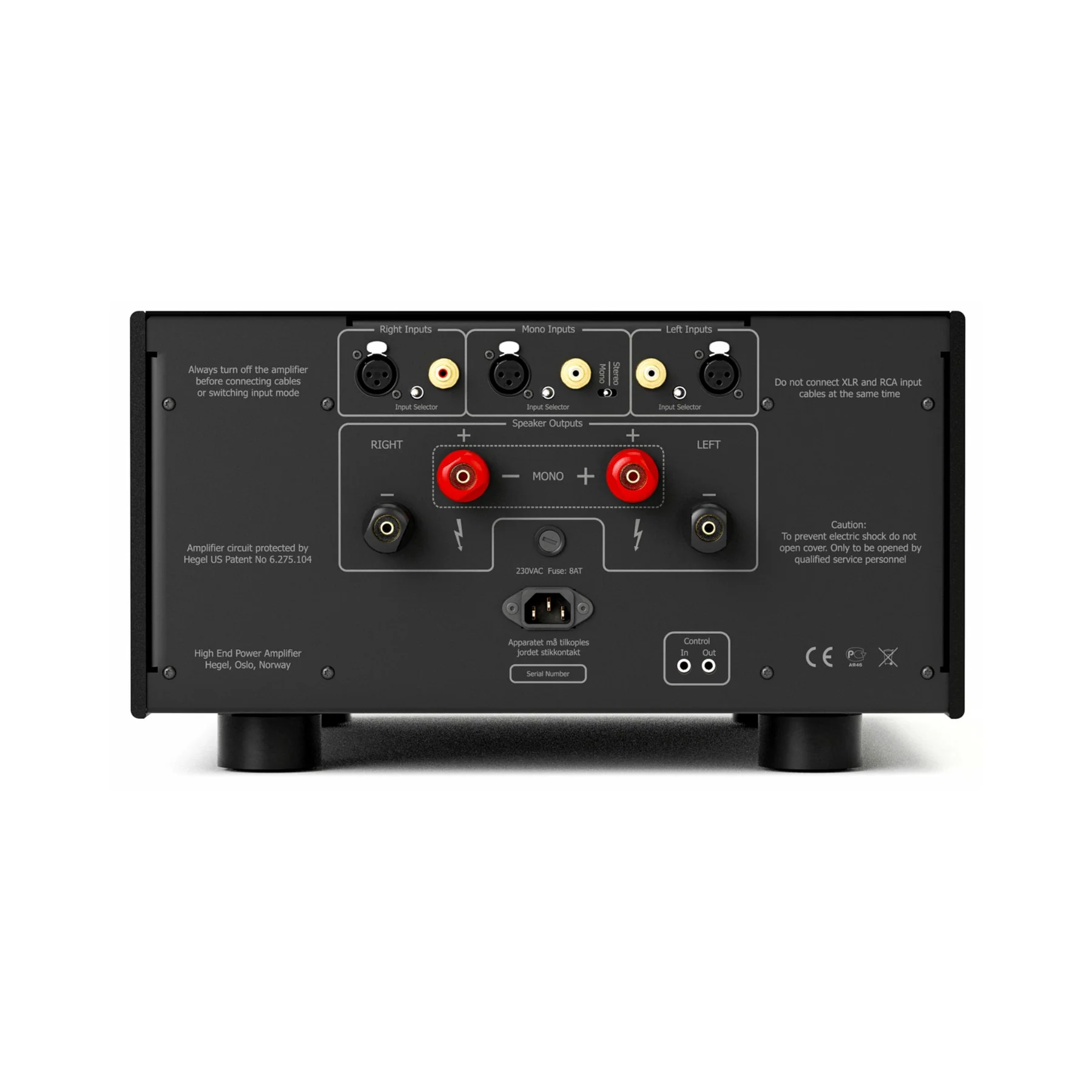

- Inputs: RCA unbalanced and XLR balanced
- Speaker Outputs: One pair of heavy-duty gold-plated terminals
- Input Impedance: Balanced 20 kohm, unbalanced 10 kohm
- Signal-to-Noise Ratio: More than 100 dB
- Crosstalk: Less than -100 dB
- Distortion: Less than 0.003% at 100 W in 8 ohms
- Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
- Damping Factor: More than 500 (mono)
- Power Supply: 2000 VA dual mono, 270,000 μF capacitors
- Output Stage: 56 pcs 15 A 200 W high-speed, ultra-low distortion bipolar transistors
- Power Consumption: 120 W in idle mode
- Dimensions/Weight (US): 9.4" x 17" x 25.6" (HxWxD), 104.5 lbs
